FPV Mini 5.8G OTG 150CH Mini Receiver UVC Video Downlink Auto-Searching VR Glasses Android Phone Receiver For FPV Racing Drone

FPV Mini 5.8G OTG 150CH Mini Receiver UVC Video Downlink Auto-Searching VR Glasses Android Phone Receiver For FPV Racing Drone

Regular price $169.09
Regular price Sale price $169.09
Sale Sold out
Color

FPV Mini 5.8G OTG 150CH Mini Receiver UVC Video Downlink Auto-Searching VR Glasses Android Phone Receiver For FPV Racing Drone

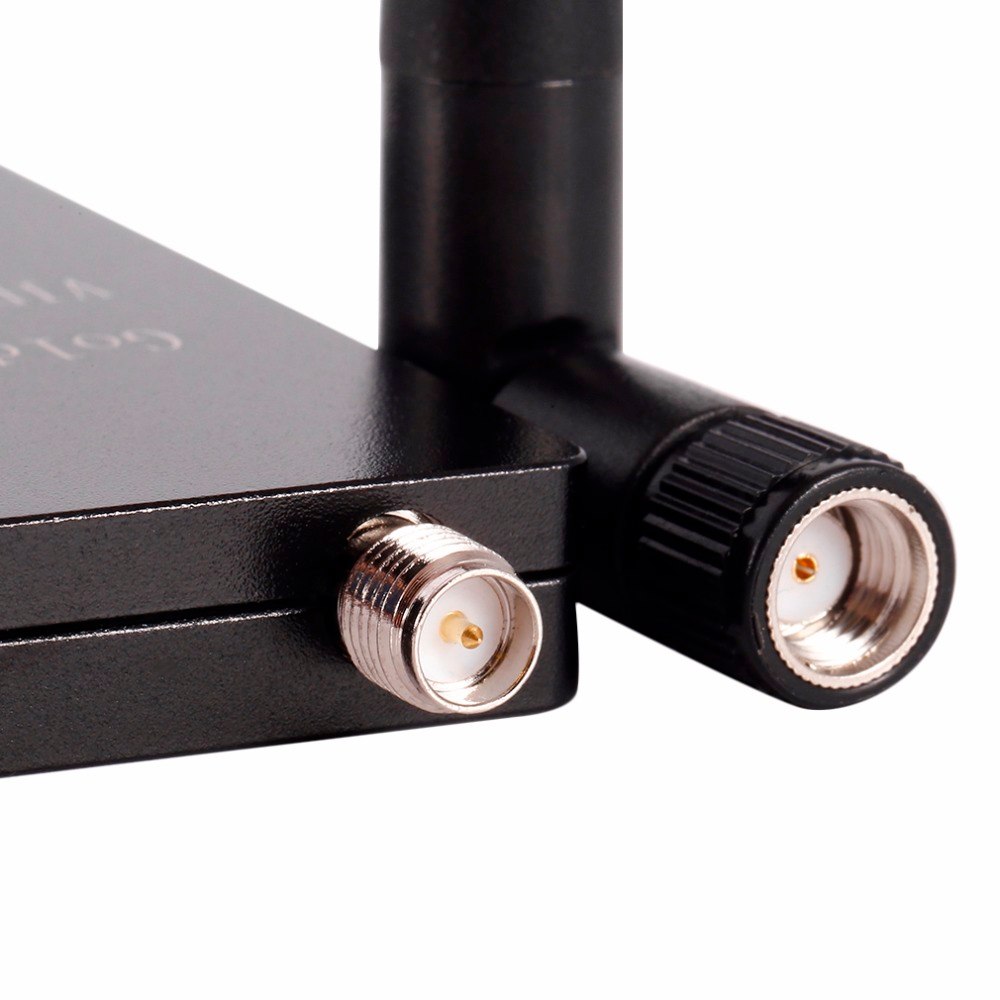

Receiver adopts CNC aluminum alloy shell,(not plastic) structure and beautiful, good for heat dissipation, strong anti-interference ability.

Product Introduction:

This is the newest and best version OTG FPV Receiver, add auto sweep and matc frequency,Graphical interface,Snow screen 0.1s Delay.
We increase the channel to 150CH. The accuracy is 2m, which is the highest accuracy of the chip in the world.
Sail model of affection and dedication, support any flight control,150 frequency points + automatic sweep frequency + spectrum instrument graphical interface + snow display +...... more simple and beautiful appearance.
With a high accuracy, then the abstract radio,this thing is the mobile spectrum instrument, you can detect the quality of the antenna, the transmitter to do ho


Specification:

Frequency: 5.8G
Channel: 150CH
Working Current: 200mA/5V
Power Supply: 5V(by smart phone)
Frequency Range: 5645~5945MHz
Interface: micro USB type-B, RP-SMA female, AV output port
Antenna interface: RP-SMA male
Sensitivity: -90dBm
Operating Temperature: -10~60'C
Cable length: 24.2cm ( including connector )
Receive distance: 1 - 2km ( also depending on the transmit power and antenna )
App name: Go FPV
Download: Google Play
System requirement: Android 4.3 or above, Windows 7 / 10
FPV Equipments: Receiver
Functions: Video
Package weight: 0.092 kg
Color:  GoldBlack
Shell Material: CNC aluminum alloy
Product size (L x W x H): 6.00 x 3.20 x 0.90 cm / 2.36 x 1.26 x 0.35 inches
Package size (L x W x H): 15.00 x 8.00 x 1.90 cm / 5.91 x 3.15 x 0.75 inches
Package Contents: 1 x OTG FPV Receiver, 1 x Antenna, 1 x Micro USB Cable


Compatible with all 5.8 G figure transmitter on the market.
A key to frequency, the OSD display frequency waveform and signal strength.
In order to ensure the best results, please maximum and bottom value of calibration signal before use.
As for calibration, please lay in empty outdoor place.
Pull the transmitter more than 30 meters/1181.1" for calibration.
Long press function key and then energize receiver to slide into the calibration mode.

Usage for Mobile Phone :
For Android Smartphone / Tablet
1.    Install an APP on your phone/tablet,
2.    Connect to Gold Model receiver with OTG Cable (no need external power supply)
3.    Power on, press the button on receiver for 3 seconds, automatic search frequency points and lock the strongest signal system
