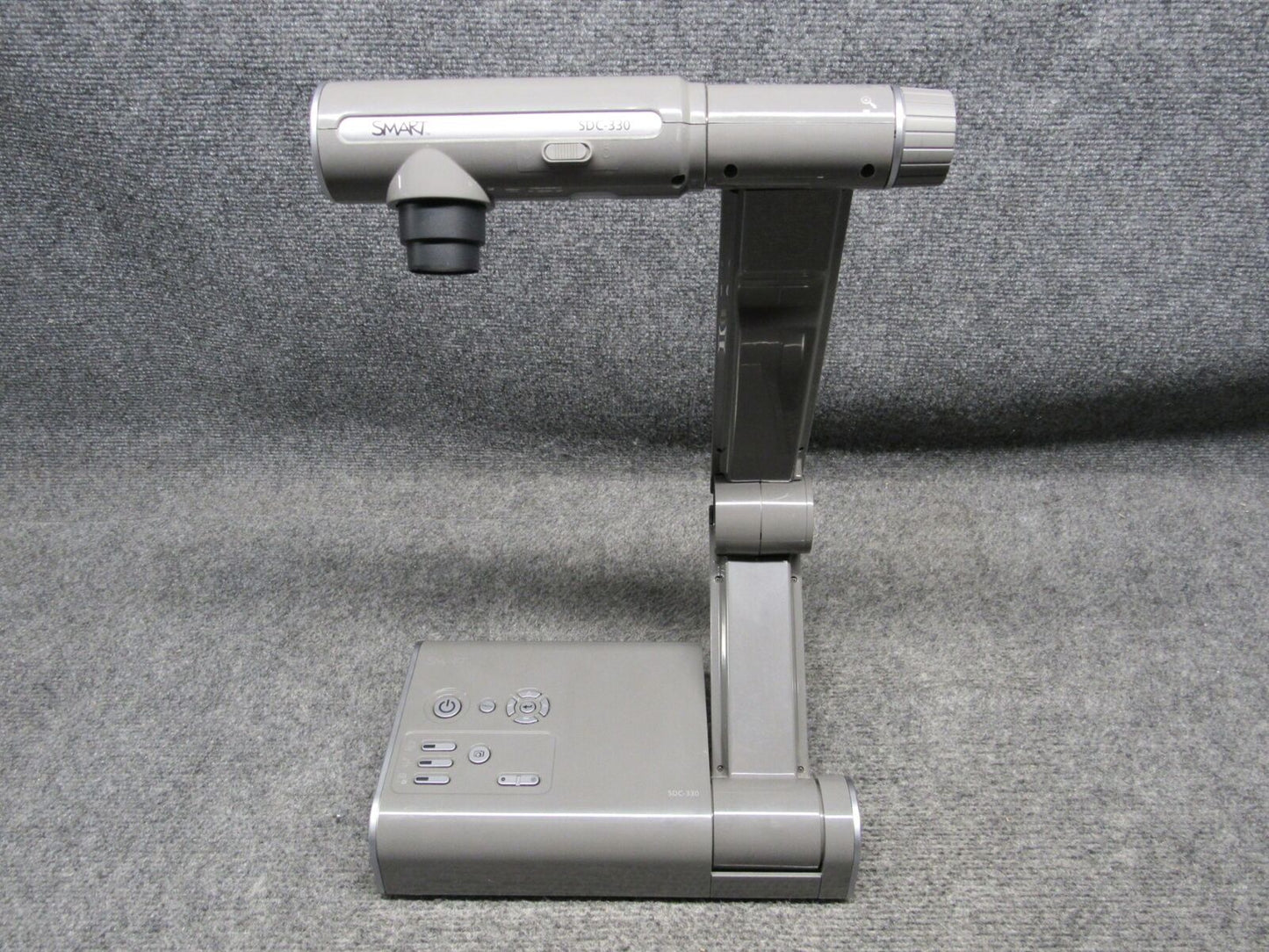

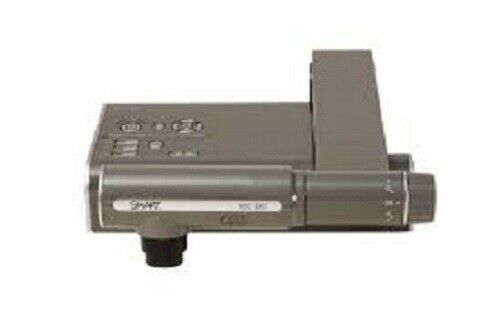

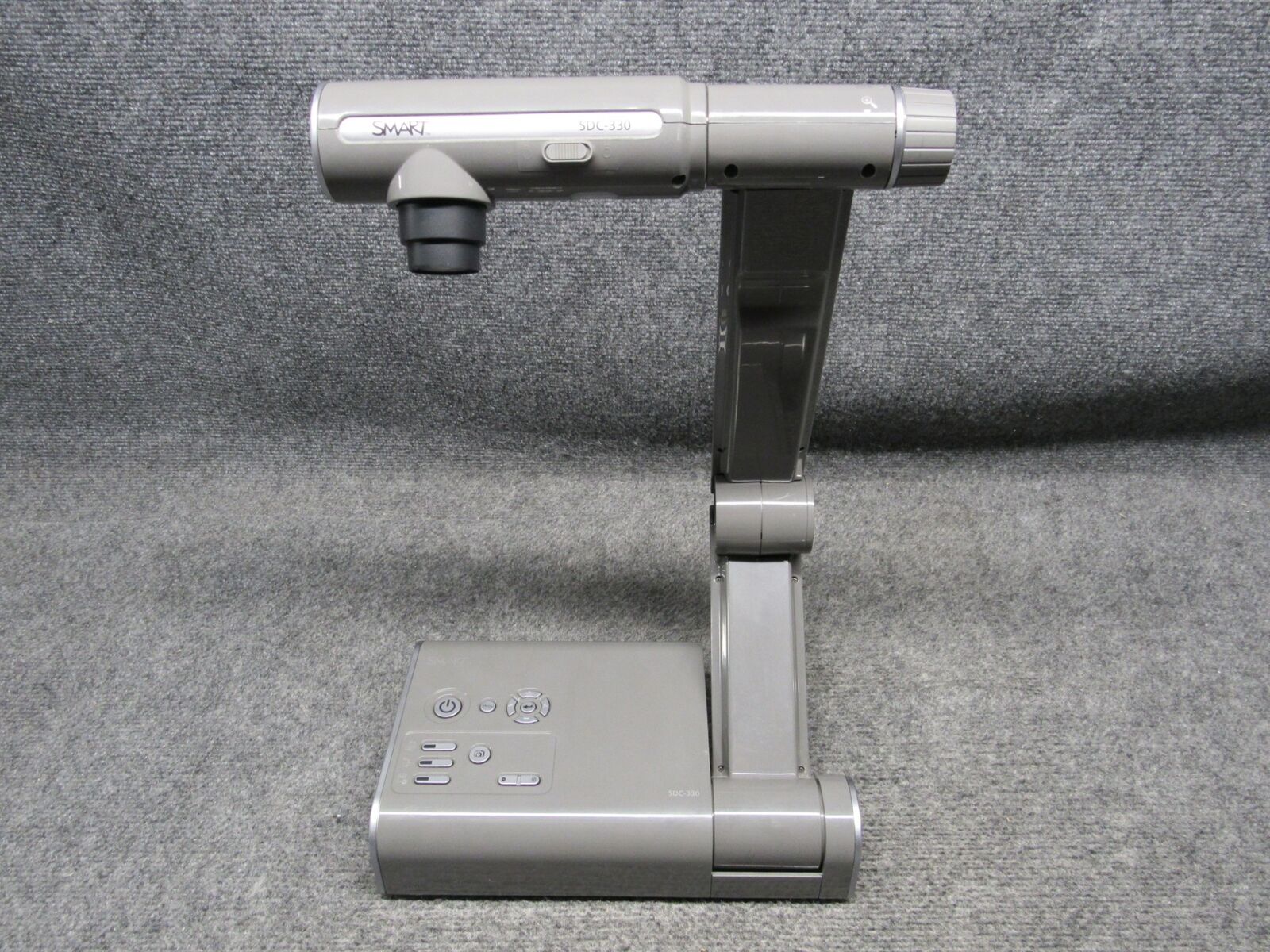

Refurb SMART Technologies SDC-330 Document Camera (2 yrs guarantee)

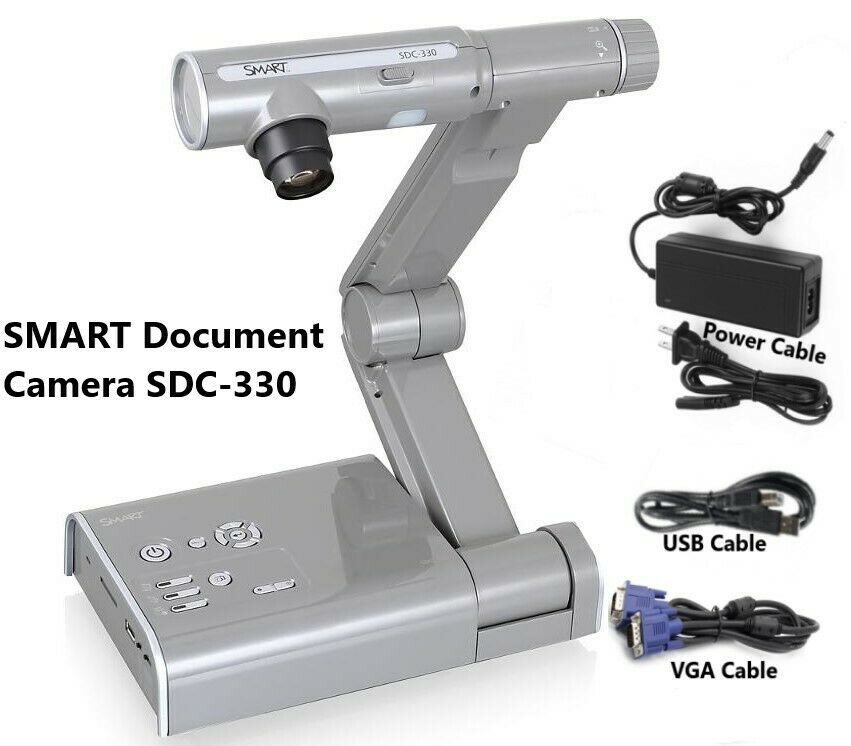

Included in this listing:

• SMART Document Camera 330
• Power Adapter
• USB Cable
• VGA Cable
• Quick start guide

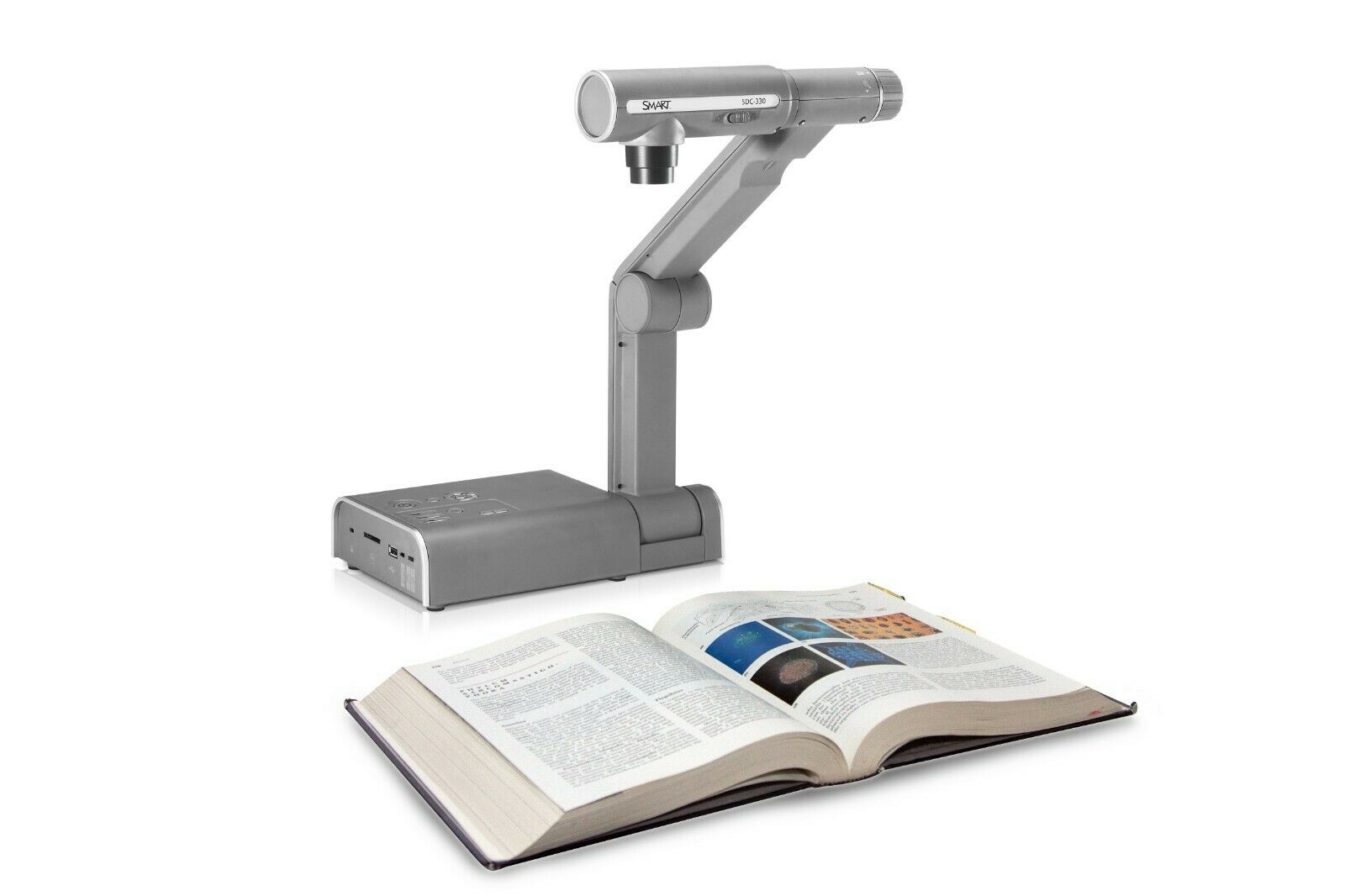

Your SMART Document Camera 330 allows you to display 3D objects, printed documents and microscope slides on your computer, projector or television. You can capture images and save them to a SMART Notebook collaborative learning software file or to an SD or SDHC memory card.

1. Power on/off
2. OSD Operation: menu, direction, enter
3. Screen capture
4. Image select: SD card mode, camera mode, computer mode
5. Image brightness
6. Image pause

Smart Notebook

1. Screen capture
2. Image magnification
3. Image brightness
4. Auto focus
5. Image focus

OSD (on-screen

display)

Camera mode

1. Image settings

• Brightness, Focus (Auto / Push / Zoom Sync), Shutter Speed, White Balance, R/B-Gain, Edge Effect, Gamma, Image Mode, Image Rotation, Microscope Mode, Color/B&W, Positive/Negative

1. Function settings

• USB Mode, Frequency, Save/Load Settings, Menu Display, Language

1. Special settings

• Highlight, Mask, Scroll, Picture in Picture

1. SD card mode

SD settings

• Format, Delete, Lock, Slideshow (Image Select, Order, Repeat, Interval)

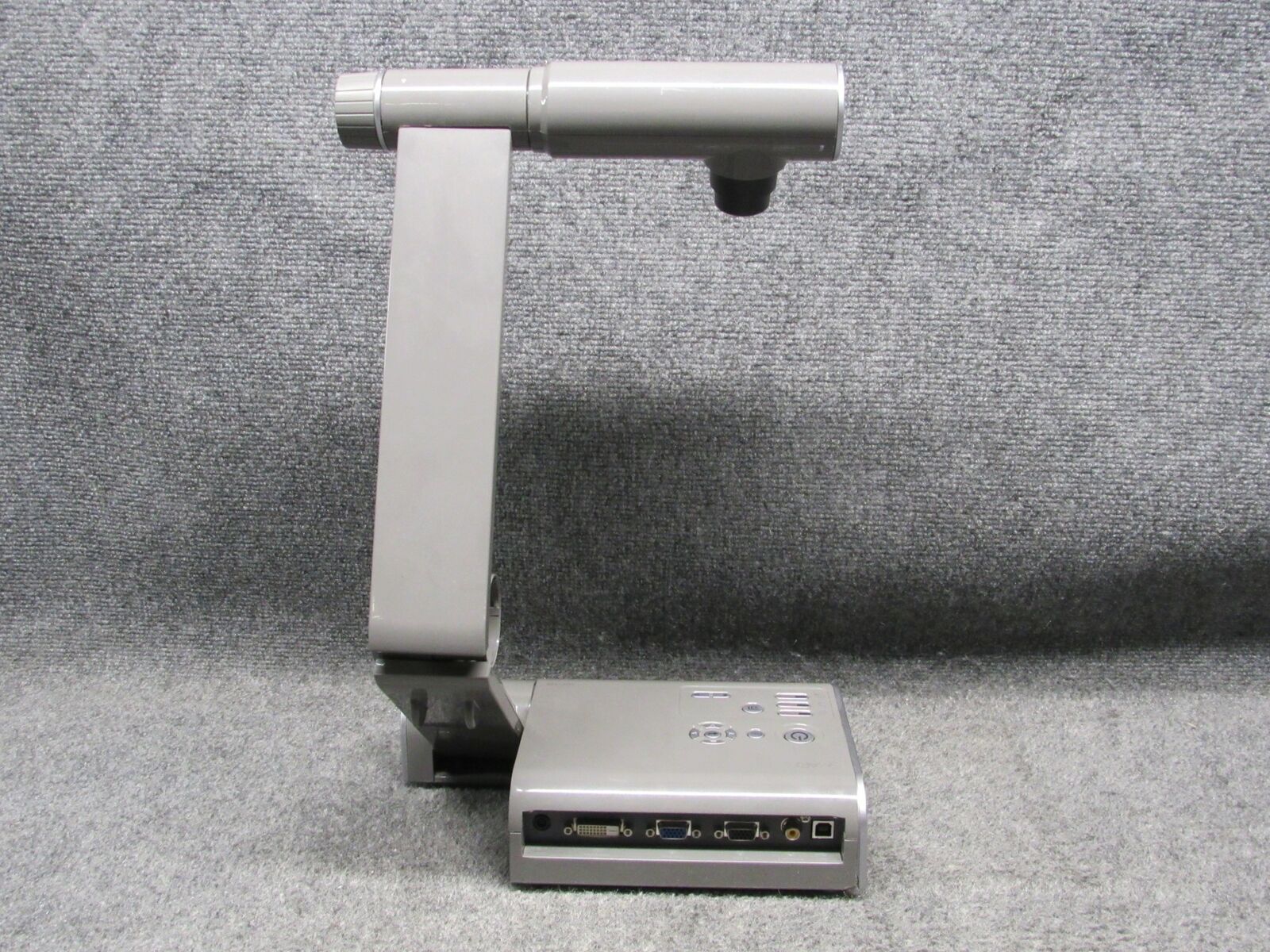

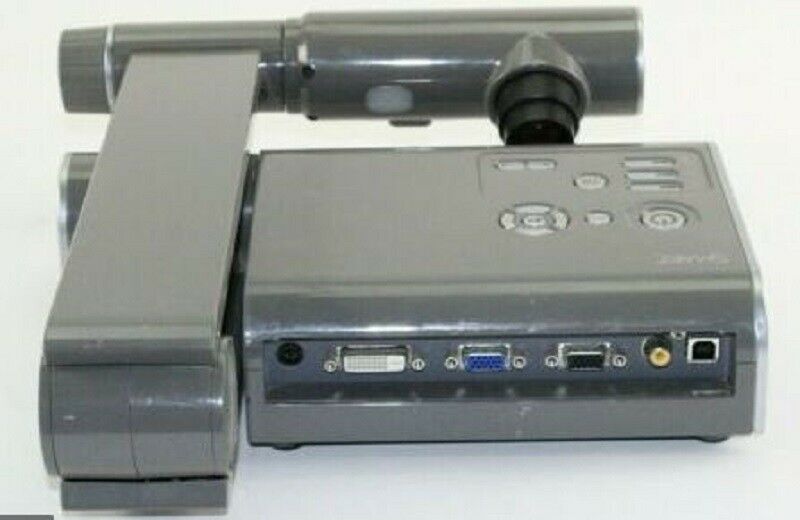

Input/output

connections

Input selection – main/external

Video format – PAL / NTSC selectable (mechanical switch)

Analog VGA output – SXGA / WXGA / XGA / 720p 60Hz (mechanical switch)

VGA input – D-sub 15 pin

USB – USB-B, USB 2.0

USB – USB-A, USB 2.0

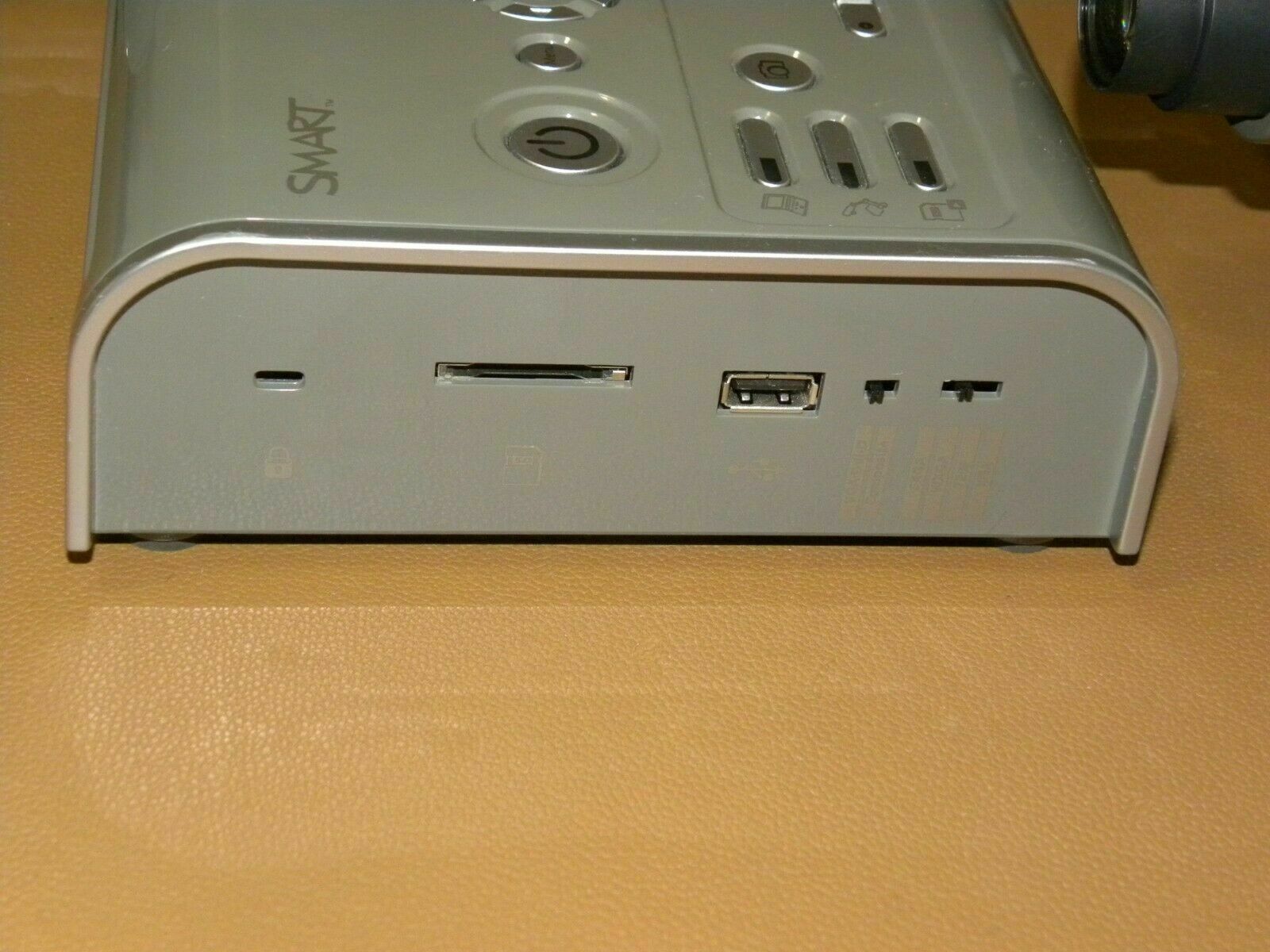

SD/SDHC card slot

Video Output – VGA - DVI-D / Composite selectable (mechanical switch)

DVI-D – single link, 720p

Microscope

interface

Direct interface with optical microscopes less than 13 3/8" (33.9 cm) high
